COB 藍寶石載板 - 透光陶瓷支架技術。

COB - Sapphire - Transparent Ceramic Lead Frame Technology


CL5000 單晶氧化鋁 (Sapphire with 3D Transparent DAM)

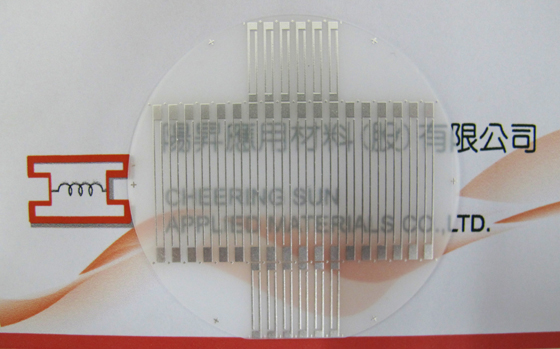

CL5000 單晶氧化鋁 (Sapphire)

新型 LED 燈泡的設計上,如果須要大的發光角度(從180度→290度或更高),往往須要將 LED 發光位置往上提高,如傳統鎢絲燈的結構。
因此把 LED 晶片封裝成長條狀的燈芯須求因應而生。
而透明的氧化鋁基板即是性價比最適合的材質。
目前透明氧化鋁最常見的來源是單晶氧化鋁圓片,也就是俗稱藍寶石基板。
陽昇應用材料已可提供藍寶石基板上製作金屬線路,並加上3D 環繞壁的技術(CL5000 Series)。
使LED 封裝業不須增加額外設備,即可立刻擁有陶瓷燈芯的產品。
CL5000 系列產品從3W 至10W 。依客戶須求可訂製。

A new LED bulb design if needed a large illuminate light angle (from 180 to 290 degrees or higher) and then is often needed to raise up the LED light position, as the structure of traditional incandescent light (tungsten filament).
Therefore, the LED chip packaging can turn the filament requirements into long stripe shape, emerges as a result. While the transparent alumina substrate’s quality-price ratio is the most suitable material.
Currently, the most common source of transparent alumina is a circular single crystal, commonly known as the Sapphire.
To enable LED packaging industry don’t have to add extra equipment, and instantly can has the product of ceramic filament. Manufacturing metal circuit on a sapphire substrate with 3D DAM technology (CL5000 Series) are now available here in Cheering Sun Applied Materials.
Product CL5000 Series is from 3W to 10W. And can be customized according to customer requirements.

莊弘毅 博士
陽昇應用材料(股)有限公司
